DUAL FORCE PLATES · IOS APP · NO SUBsCRIPTION
Force Plate System Built for Real Performance Labs.
Cronox force plates measure jump performance, isometric strength, asymmetry and readiness with two independent wireless plates and a free app for iPhone, iPad and Mac.
LIFETIME OTA FIRMWARE UPDATES
HARD TRAVEL CASE INCLUDED
SHIPS WORLDWIDE
Force plates made for everyday use.
Force plates set up in minutes. Test daily.
Cronox Force plates have been created to obtain laboratory grade precission on the field. No cables, no laptop, no complicated setup. Simple.

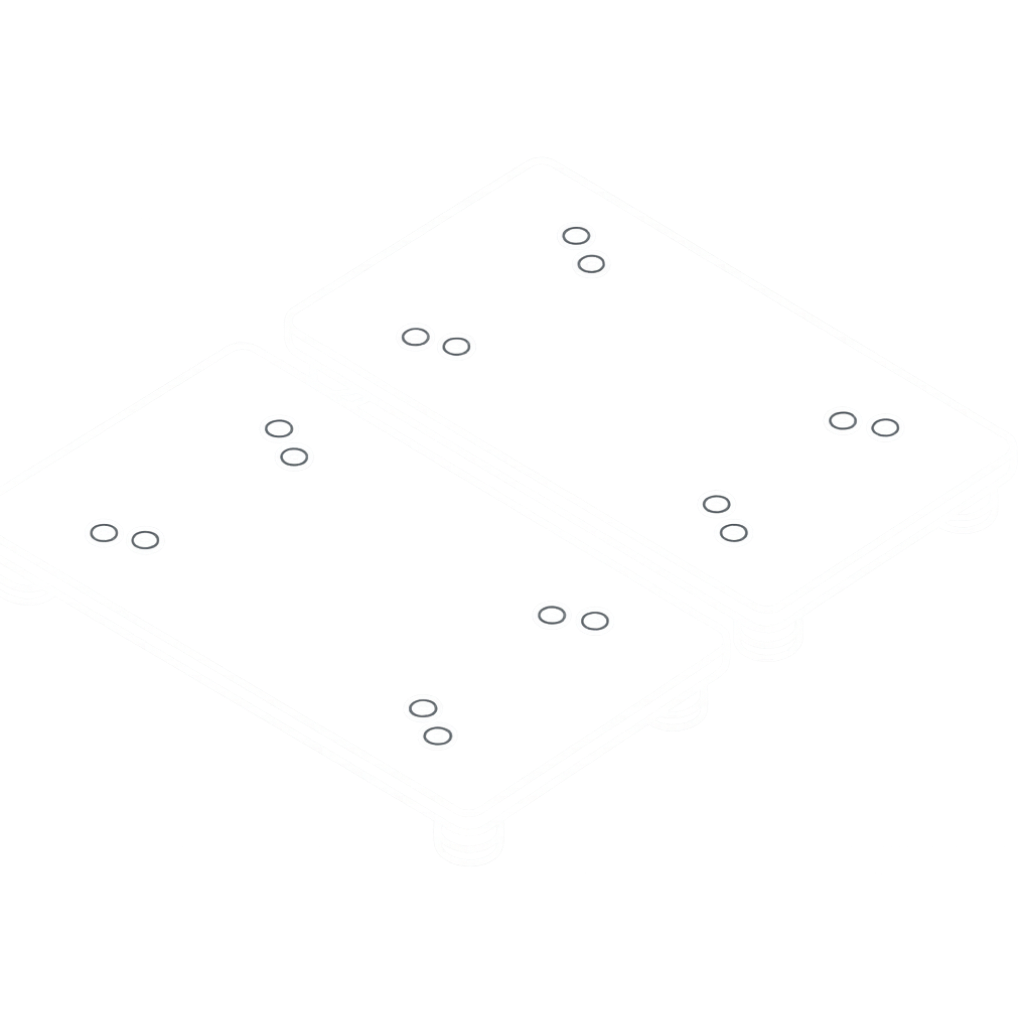

Place the plates
Set them side by side on any flat, firm floor. One plate per foot.
Connect wirelessly
Pair the plates with the app over Bluetooth automatically. Pick the test: jump or isometric.
run the test
Choose who is testing, step on and perform the test. Our algorithm will detect automatically each test.
Get results
The app detects every rep and shows results instantly. Including jump height, left/right assymetry, RFD and many more.
Software · Test modes
Force plate tests: jump, isos, video.

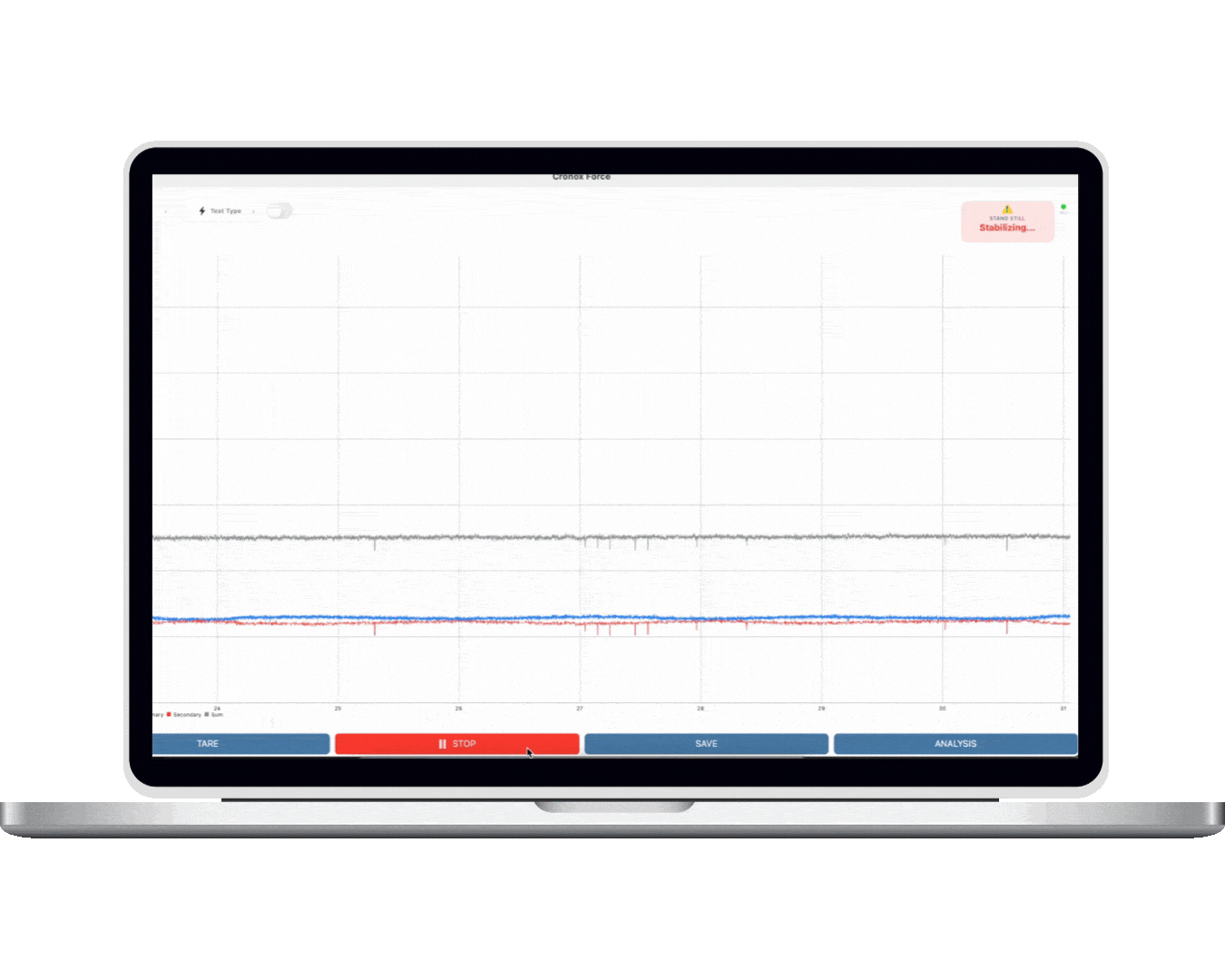

Pick a protocol, step on the plates and go. The app detects each rep automatically and splits the movement into phases — no manual trimming.
Jump tests

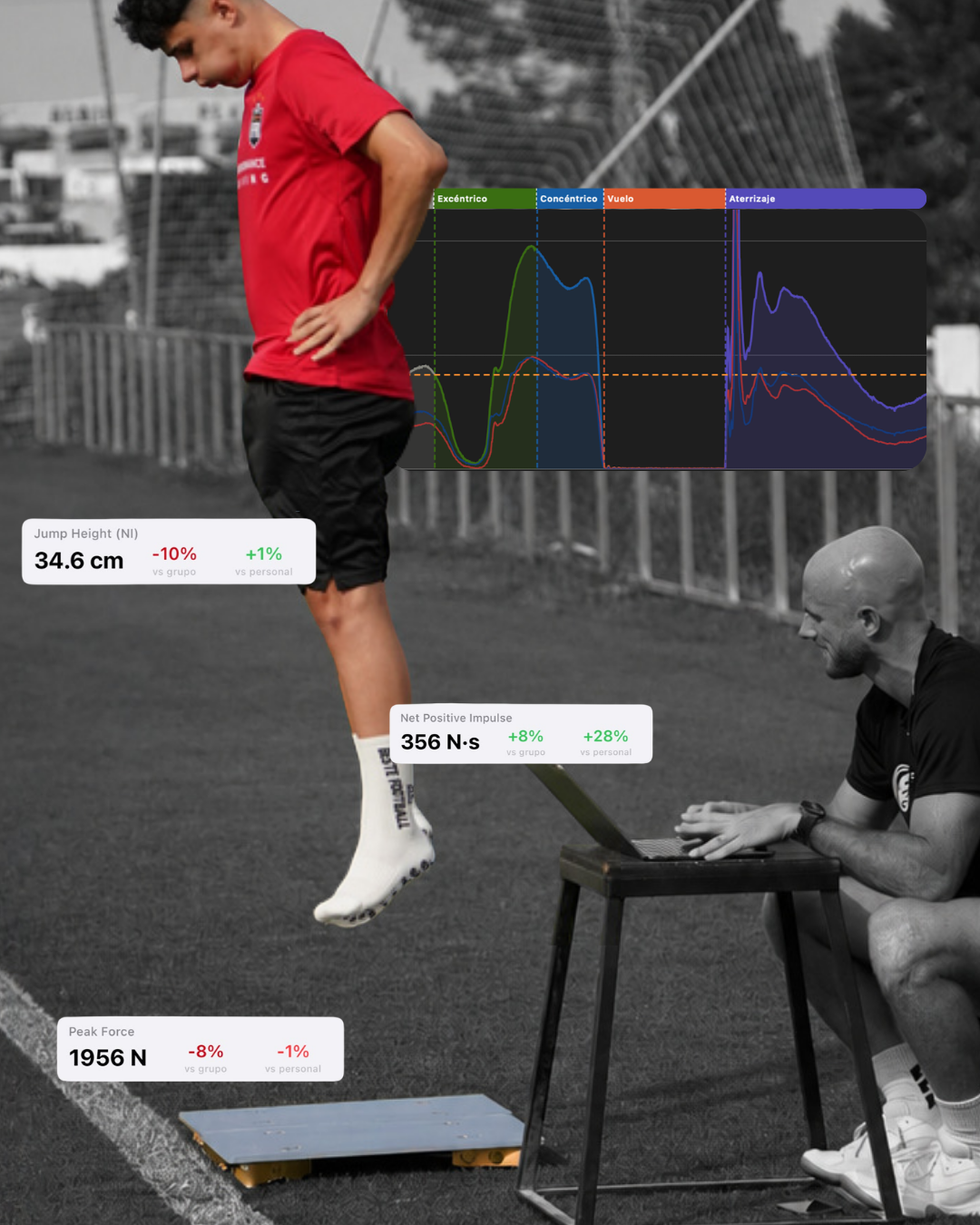

Countermovement Jump, Squat Jump and Drop Jump with automatic take-off and landing detection. Get jump height, RSI, RSImod, contact time, peak forces, RFD and left/right asymmetry for every rep.
Isometric tests
IMTP, ASH and many more isometric protocols. Measure peak force, net peak force, RFD at 50, 100 and 200 ms, impulse and bilateral asymmetry.
Video Analysis mode
Record with your iPhone or iPad camera, perfectly synced with the force curve. Scrub frame by frame and see force and centre of pressure at every instant — link technique to numbers.
- Camera recording synced with the force–time graph
- Centre of pressure (CoP) calculated and shown
- Frame-by-frame review of every phase
Instant readiness
Know if they're ready before they leave the plates.

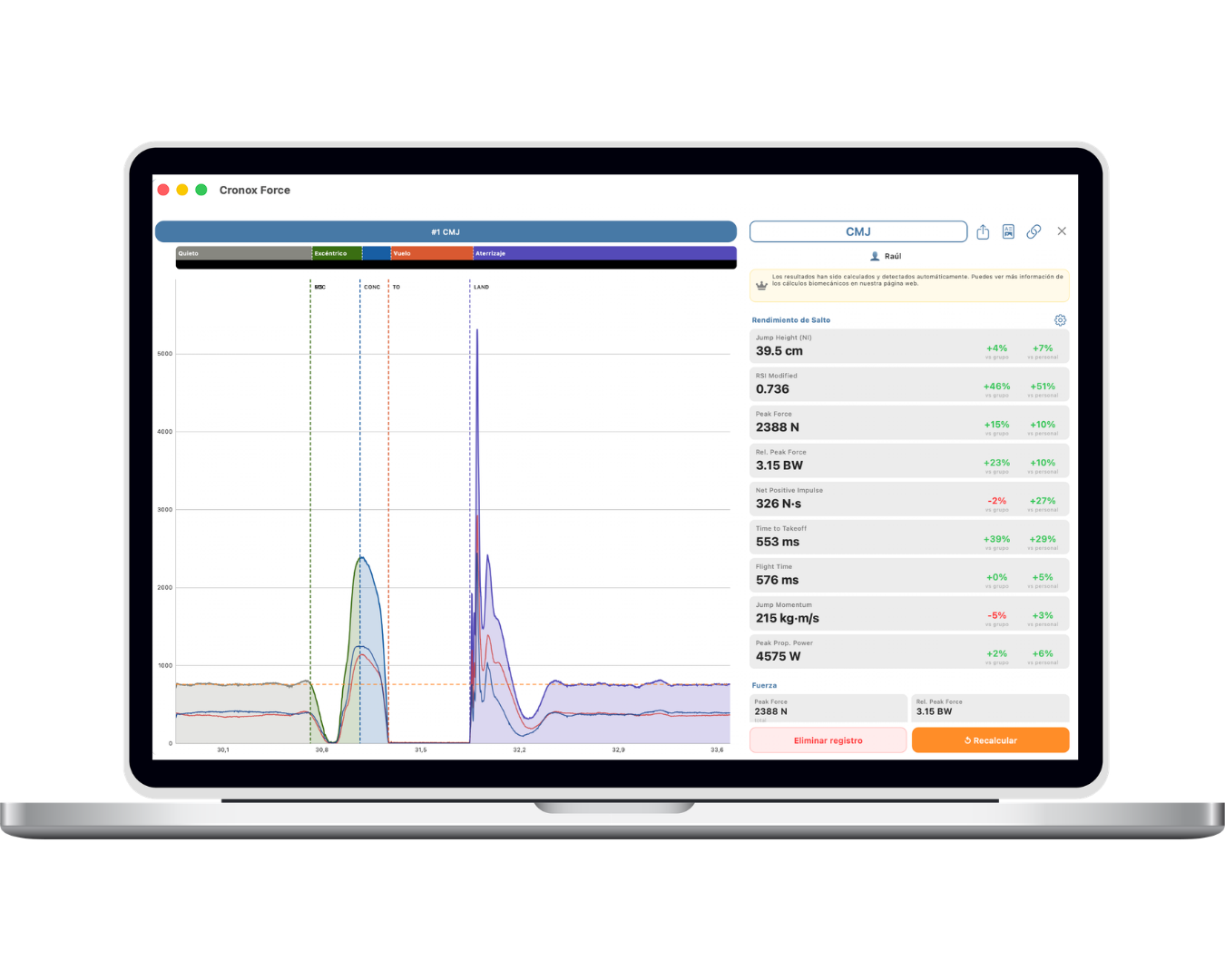

Right after each test on the force plates, Cronox shows the athlete's readiness as a percentage of their own baseline — for that exact test type (CMJ, SJ, IMTP…) and metric. You choose what "normal" means:
One number per metric, ready seconds after the rep. Adjust the load before training starts, not after.
For coaches

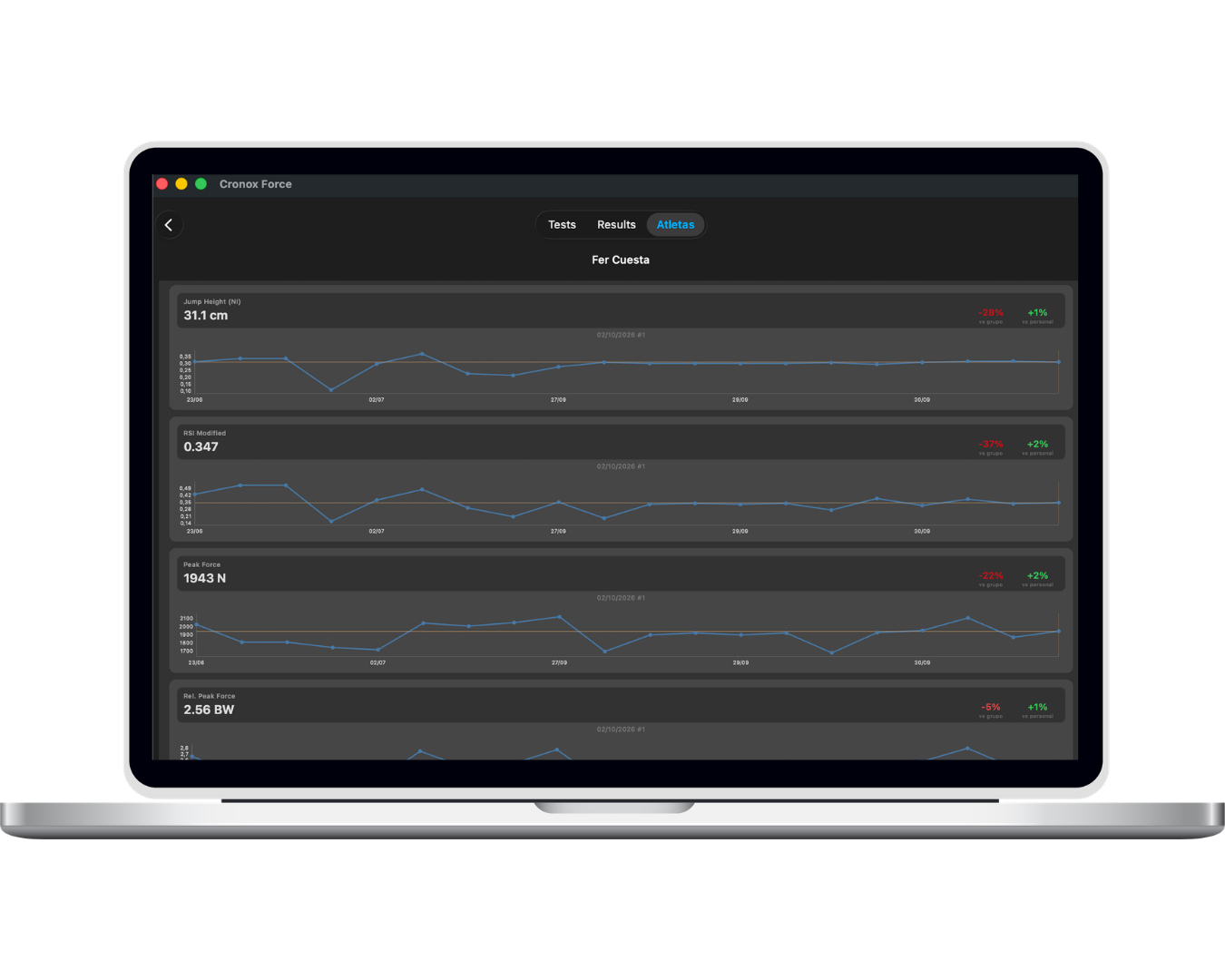

Evolution over the season
Follow any metric test after test. See when an athlete is improving, plateauing or carrying fatigue — and how today compares with their history.
For physios
Left vs right asymmetry
Two independent force plates measure each leg separately. Track the asymmetry index for every metric, spot imbalances early and follow return-to-play with objective data.
- Left/right values and asymmetry % per metric
- Asymmetry trend across sessions
- Works in jump and isometric tests
Reports & data
Share it as a report. Own it as raw data.

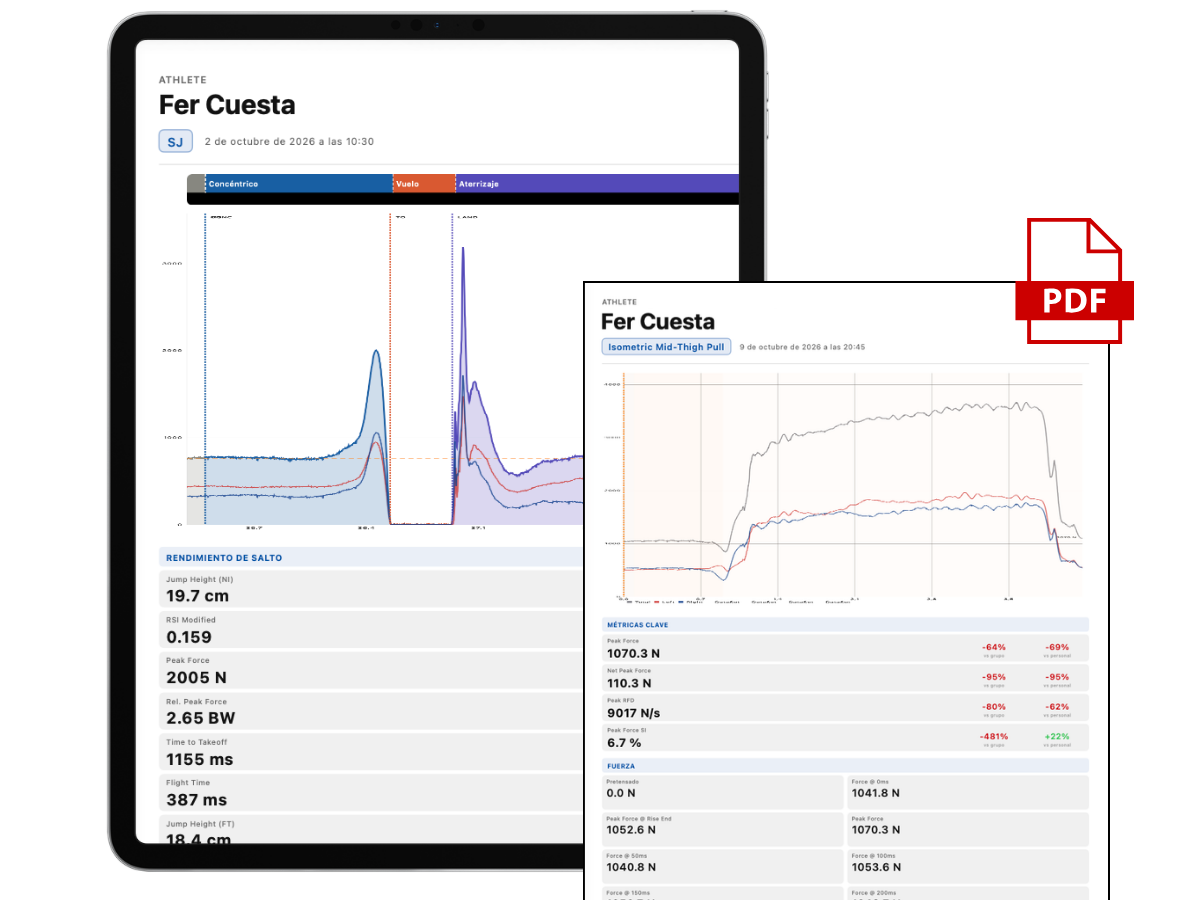

PDF reports in one tap
Generate clear PDF reports for athletes, coaches and medical staff. Send them straight from your iPhone, iPad or Mac.
.CSV

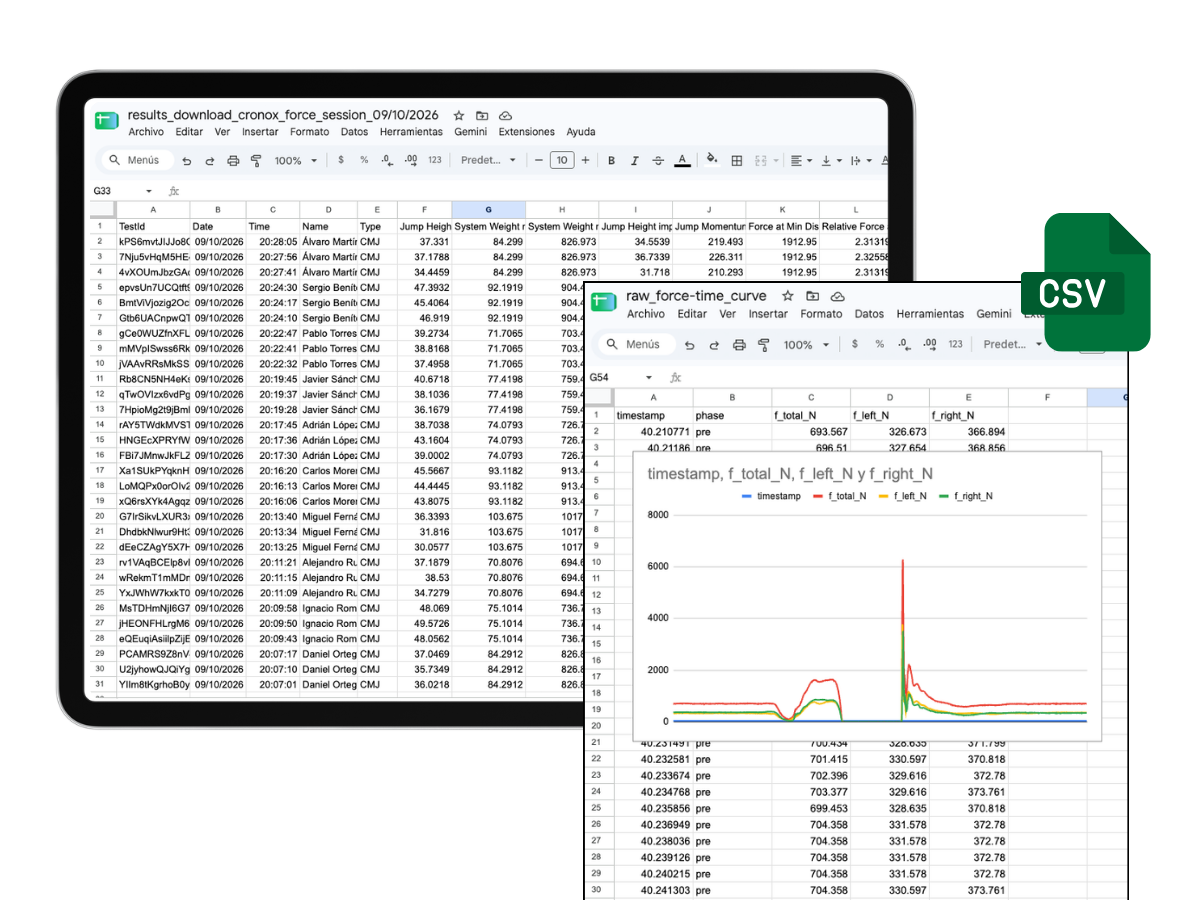

Raw data export to CSV
Export the full force signal and every calculated metric of a testing session as CSV. Open it in Excel, Python, R or your athlete management system. Your data is always yours.
Hardware
Force plates built for the field. Precise enough for the lab.

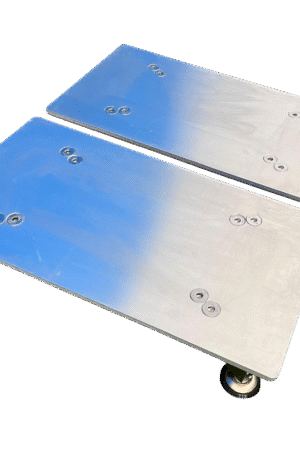

Each of the two force plates has four high-capacity load cells, so left and right force are measured separately. Charge them over USB, pack them in the wheeled case and test anywhere — gym, pitch or track.
Included

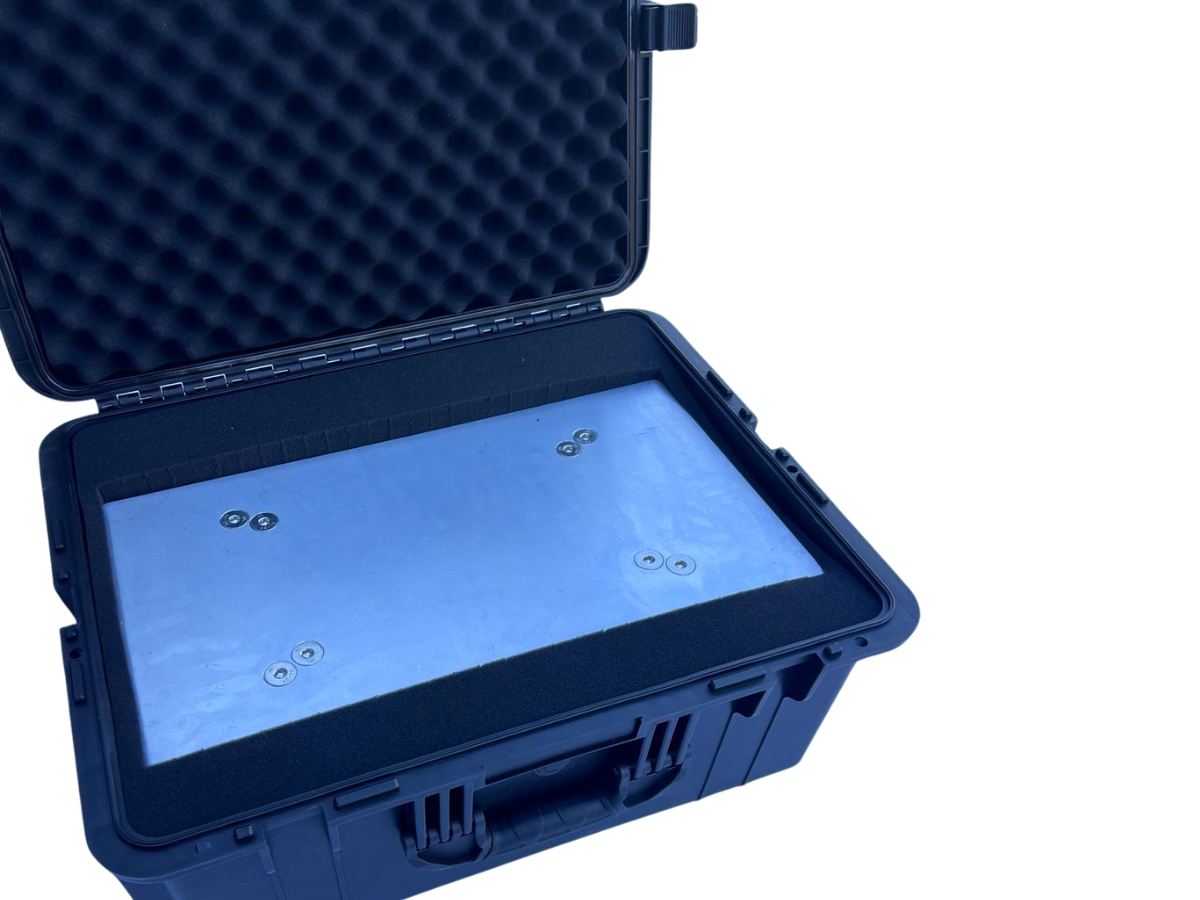

Hard travel case with wheels
Both plates fit in one rigid wheeled case (64 × 52 × 34 cm). Roll it to the training ground, to away games or onto a plane.
Full specifications
| Plate dimensions | 55 × 30 × 8 cm (each) |
|---|---|
| Max load | 2,000 kg per plate · 4,000 kg total |
| Sampling rate | 940 Hz |
| Plate weight | 9 kg (each) |
|---|---|
| Load cells | 4 per plate, 500 kg each |
| Bilateral measurement | Yes — independent left and right plates |
| Connectivity | Bluetooth Low Energy (BLE 5.0) |
| Battery | Rechargeable lithium, up to 6 h of use |
| Charging | USB |
| Firmware | Lifetime OTA updates via WiFi |
| Transport | Rigid case with wheels, 64 × 52 × 34 cm |
| Compatible devices | iPhone, iPad, Mac |
| App | Free, no subscription |
Validation
Force plates tested against the reference.
Cronox Force Plates are being validated by two external universities. While the paper is in publication, read our internal report comparing Cronox against Hawkin Dynamics force plates.
Faq
Is app free? Is the system validated?
Find answers about our force plates below. If you don’t find your question, contact us.
Does the app require a subscription?
No. The Cronox iOS app is free with no recurring fees. New harwdare updates are included too. Mantain your force plates updated via WiFi.
Do you ship internationally?
Yes. We ship to Europe and worldwide. Standard delivery 7–10 business days + shipping time. Contact us if your destination is not calculated at check out.
Is the Cronox Force Plate scientifically validated?
The system is being validated by two external universities at the moment. While the scientific paper is being published we have created an internal document comparing Cronox Force Plates against Hawking Dynamics Force Plates.
READ HERE -> cronox-sports.com/Cronox-Plate-Validation-Report.pdf
What is the delivery time?
Orders are dispatched within 7–10 business days.
Let's talk
See our force plates live in a free online demo.
Book a video call and we'll walk you through the plates and the app with your own use case. We speak English and Spanish.
